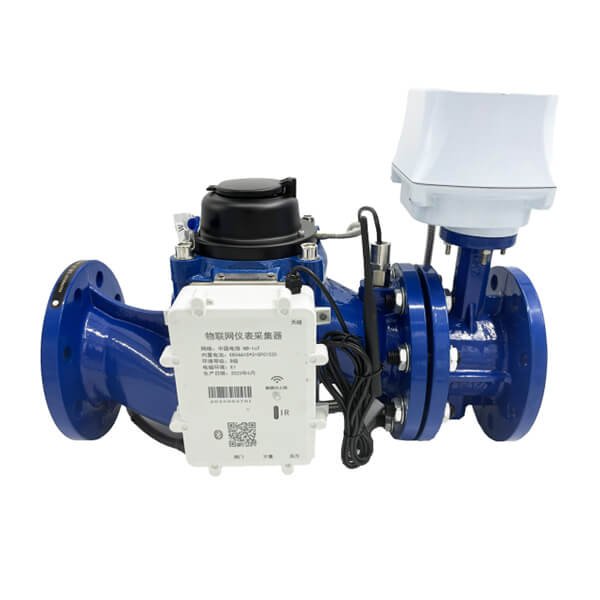

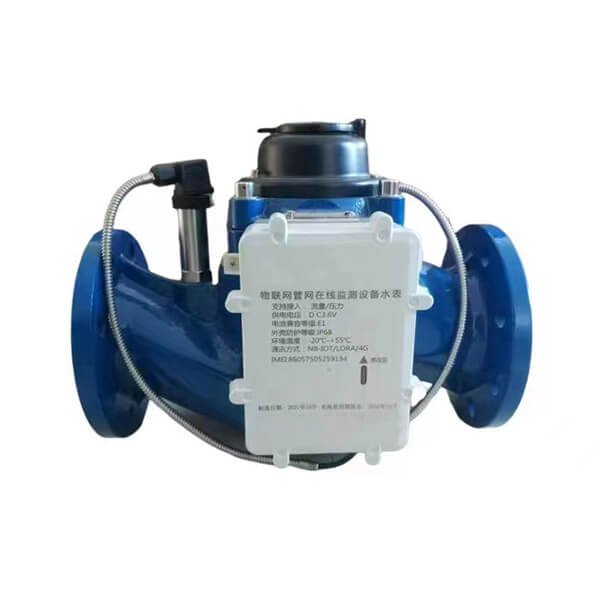

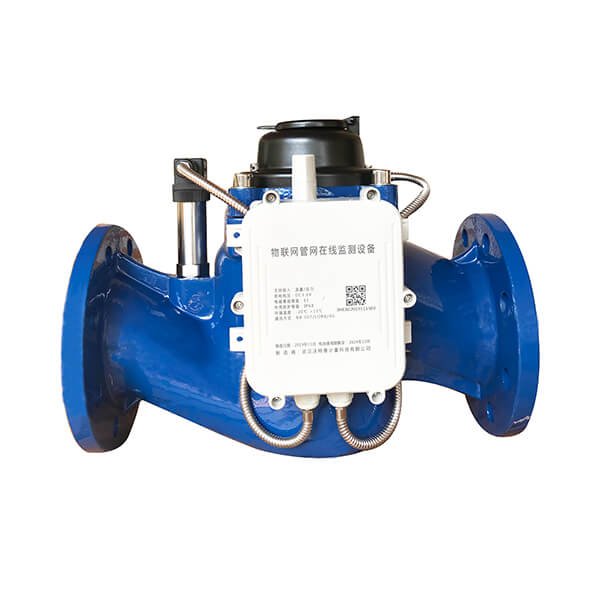

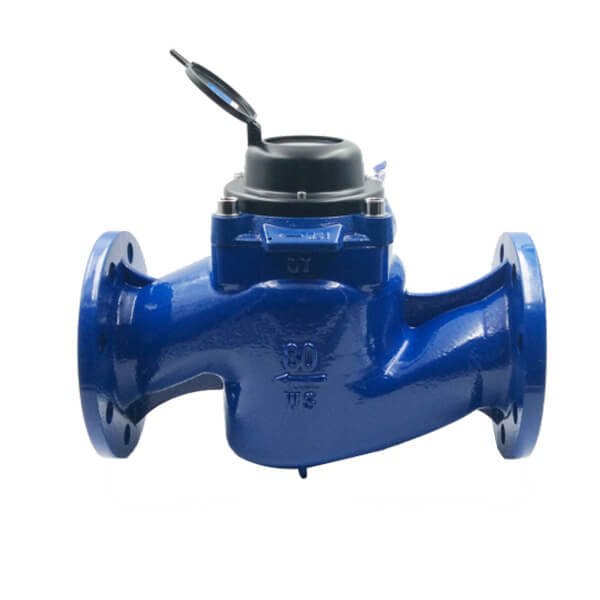

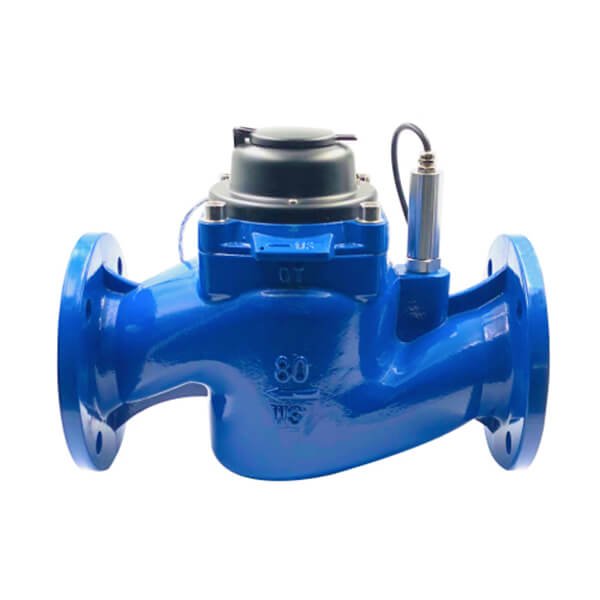

Woltmann Vertical Removable Water Meter DN40-200mm

Advantageous Specification

• Combine with the advantages of WPH and Multi-jet water meters, adopting complete flow detection. The detected axial flowrate is input in a low position bur output above, thus the measuring precision is much higher than that of other types of water meters especially in low flowrate.
• As for the structure designs, worm wheel and worm driven mechanism is not adopted, but the counter is driven directly by turbines, with extremely low starting flowrate.
• Inbuilt stainless steel strainer is adopted to guarantee the meter’s long-term service with stability.

ENVIRONMENTAL   MANAGEMENT

OCCUPATIONAL HEALTH & SHFETY MANAGEMENT

Characteristics

• The measuring insert is removable for easy maintance.
• Magnet-driven dry type or liquid seal wet type design are adopted to display the counter reading clearly.
• Various sizes and measuring insert, complete flow detection with high accuracy in measurement.
• Without worm wheel and worm driven directly by turbines, with
• extremely low starting flowrate.
• Wide range of measurement,suitable for measuring the Water with variable flowrate.
• Mechanism of inside calibration type,effectively prevents from private calibration.
• Inbulilt stainless steel strainer.
• Bearing systems with high wearing feature guarantee the meter’s ZF long-term stability and reliability, increasing the maximum flowrate prominently.
• 6 enlarged or 7 normal figure rolls to show readings.
• Bodies with epoxy resin powder coating and stainless steel
• fasteners, rust-proof to the largest extent, extending the service life.
• Can be equiped with signal-transmitter counter, realizing outputs of multiple pulse signals (single/double/triple reed switch, light-emitting diode(opto), metal sensor(namur),Hall component) .
• Can be equipped with unremovable outer cover .

Working Conditions

Water temperature：Cold Meter ≤50°C Hot Meter ≤90°C

Water pressure：≤1.0MPa / 1.6MPa
