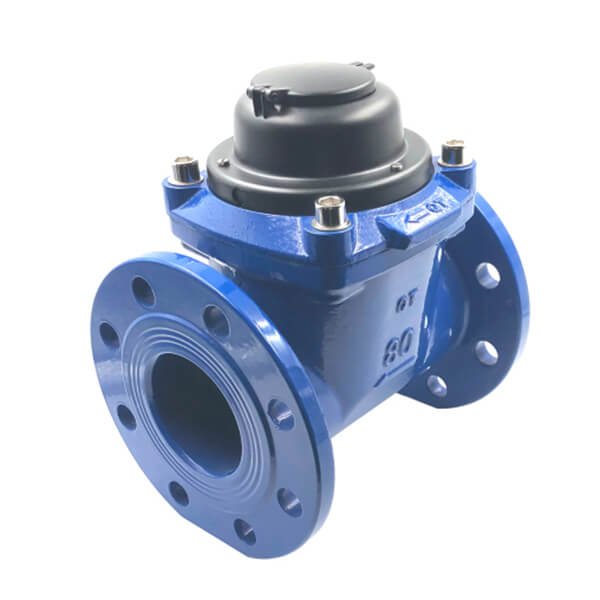

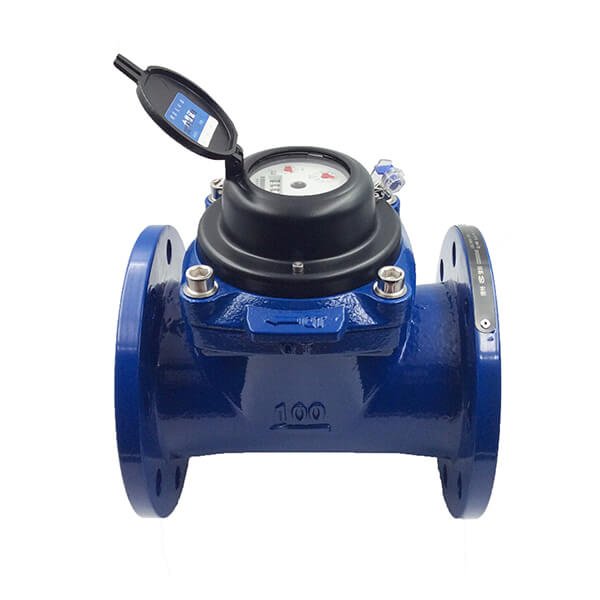

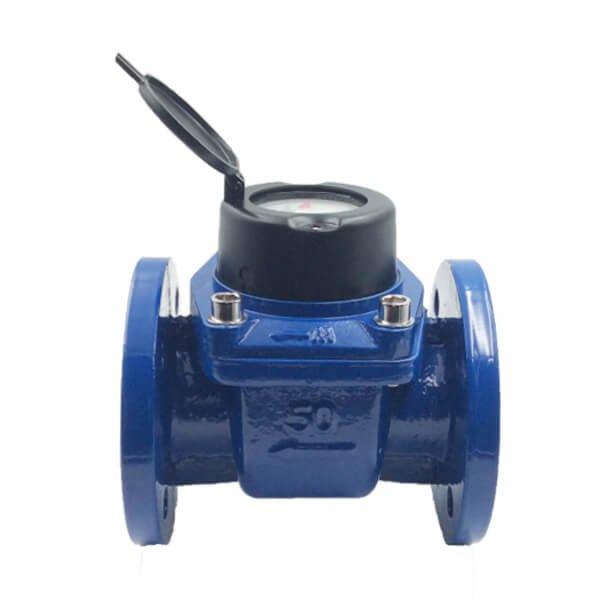

WPH Woltmann Horizontal Removable Water Meter DN 40-500mm

Characteristics

• Removable measuring inserts are divided into four categories: DN40-65, DN80-200, DN250-300 and DN400-500, easy for maintenance.
• Low pressure loss, high flow capacity, suitable for measuring supply line of water.
• Magnet-driven dry type structure, neat counters displaying clearly.
• 360° rotating counter, convenient for reading.
• 6 enlarged or 7 normal figure rolls to show reading.
• Epoxy resin powder coating and stainless steel fasteners, rust proofing to the largest extent, extending the service life.
• Wearable shaft and bearing system, prominently strengthen the meters long-term stability.
• Can be equiped with signal-transmitter counter, realizing outputs of multiple pulse signals (single/double/triple reed switch, light-emitting diode (opto), metal sensor (namur), Hall component).
• Can be equipped with unremovable outer cover.

Working Conditions

Water temperature： Cold meters ≤50 °C

Hot meters ≤90°C (DN 40-200)

Water pressure：≤1.0 MPa /1.6MPa

Installation

Straight pipe is required

Need to add a strainer

Parallel installation
